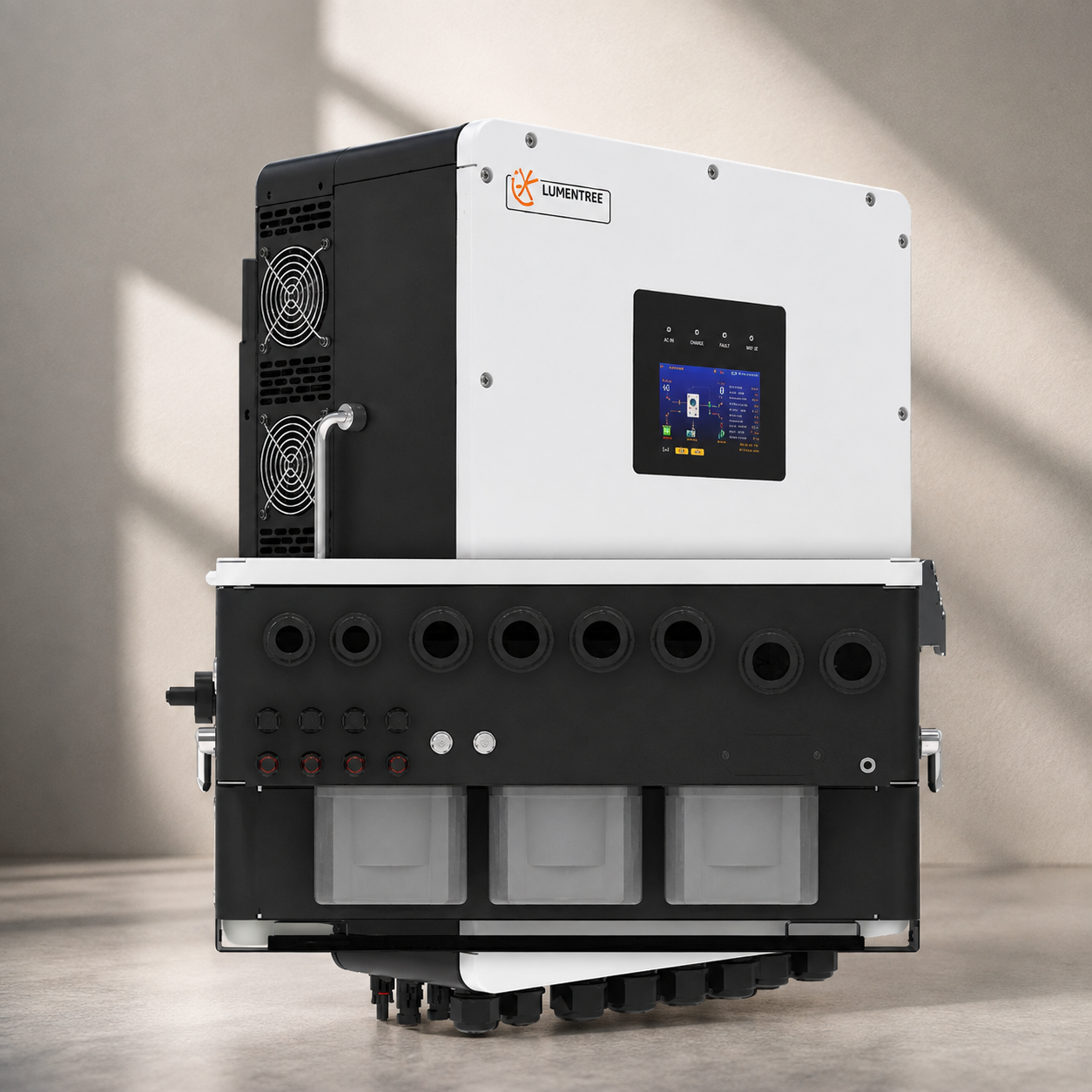

SUNT-12.0kW-S | IP65 | Single-Phase Hybrid Inverters
SUNT-12.0kW-S | IP65 | Single-Phase Rated Power：12kW Max PV Input Power：19200W Max PV Input Current：30A×2=60A 2MPPT PV Start-up Voltage：150V Max PV/DC Input Voltage：500V Battery Input Voltage Range：40-60V Max Battery Charge Current：220A (Configurable) Max Battery Discharge Current：260A (Configurable) Max AC Output Current：55A Max AC Bypass Current：63A Product Size & Weight：532×266×639mm/36kg Package Size & Weight：632×366×739mm/40kg
Have questions or want to order?
Description
SUNT-12.0kW-S | IP65 | Single-Phase
Rated Power：12kW
Max PV Input Power：19200W
Max PV Input Current：30A×2=60A 2MPPT
PV Start-up Voltage：150V
Max PV/DC Input Voltage：500V
Battery Input Voltage Range：40-60V
Max Battery Charge Current：220A (Configurable)
Max Battery Discharge Current：260A (Configurable)
Max AC Output Current：55A
Max AC Bypass Current：63A
Product Size & Weight：532×266×639mm/36kg
Package Size & Weight：632×366×739mm/40kg
